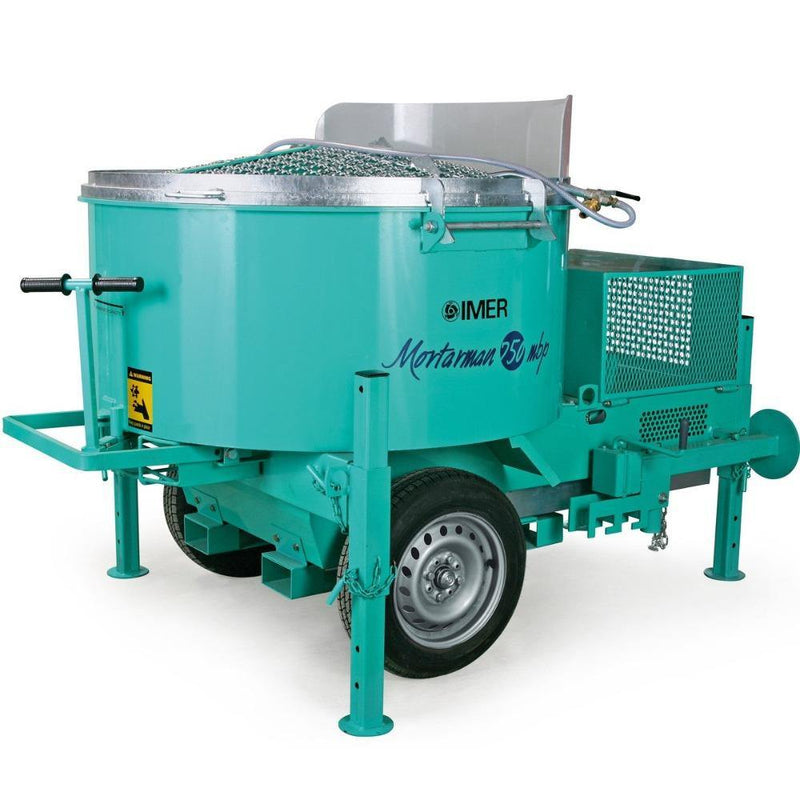

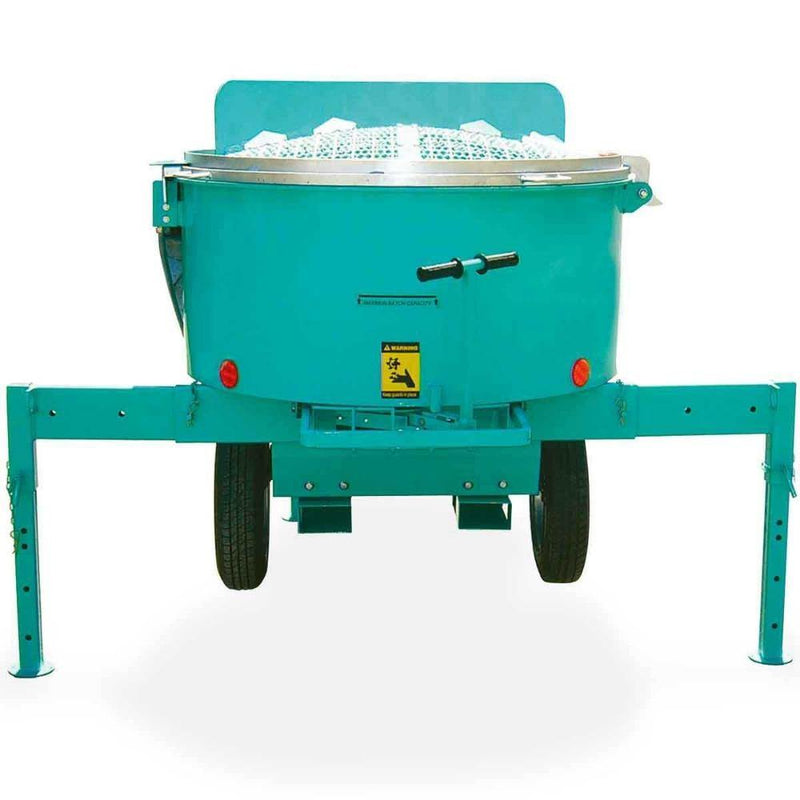

Imer Mortarman 750 MBP (Mini Batch Plant)
SKU 1194648
Mortarman 750 Mortar Mixer
This mixer doubles as a mini batch plant for the precast industry. This vertical shaft mixer is capable of handling dry pack, grouts, thin sets, stuccos, self-leveling materials, and mortar.
Features
Free shipping from IMER factory warehouse
Mixes 1600 lbs of mortar, dry pack, stucco, or sand & cement
Mix concrete, max aggregate size is 3/8"
5 hp 220 V single phase or 7.5 hp 3 phase 220 V

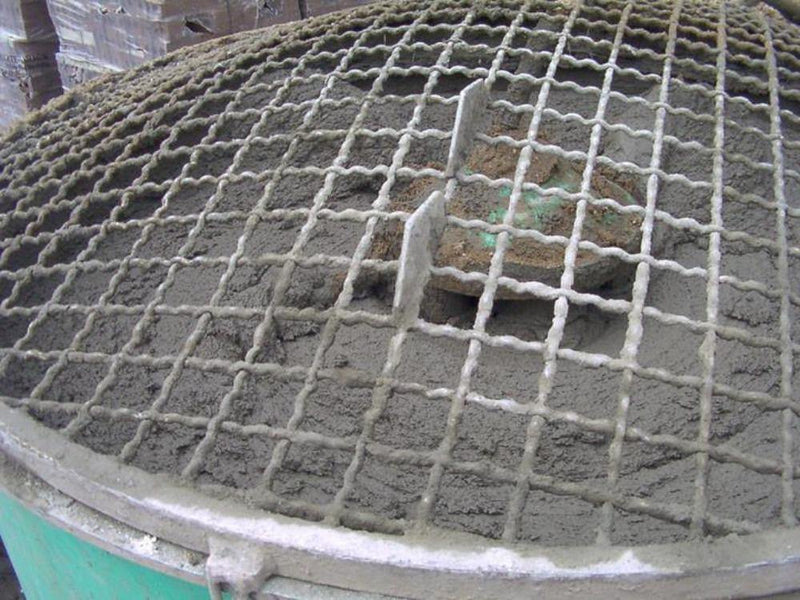

One piece hinged grate with auto shutoff that stops paddles
Low & wide design for towing safety and speed
Can mix materials from dry to wet
Discharge outlet height 30"
Drum diameter 52"
|
Imer Mix 750 Batch Plant Specifications
|
| Drum capacity |
27 cubic feet |
| Batch output |
17 cubic feet (est 1,700lbs ) |
| Gas motor w/ centrifugal clutch |
13 HP Honda w/ electric start |
| Electric motor 220 Volt |
5 HP 1 phase / 7.5 HP 3 phase |
| Drum diameter |
51" |
| Maximum aggregate size |
3/8" minus |
| Discharge outlet height |
30" |
| Pneumatic tires |
22" |
| Weight |
1,700lbs |
| Dimensions L x H x W |
90" x 62" x 63" |
| Shipping Pallet Dimensions L x H x W |
86" x 64" x 64" |
