What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

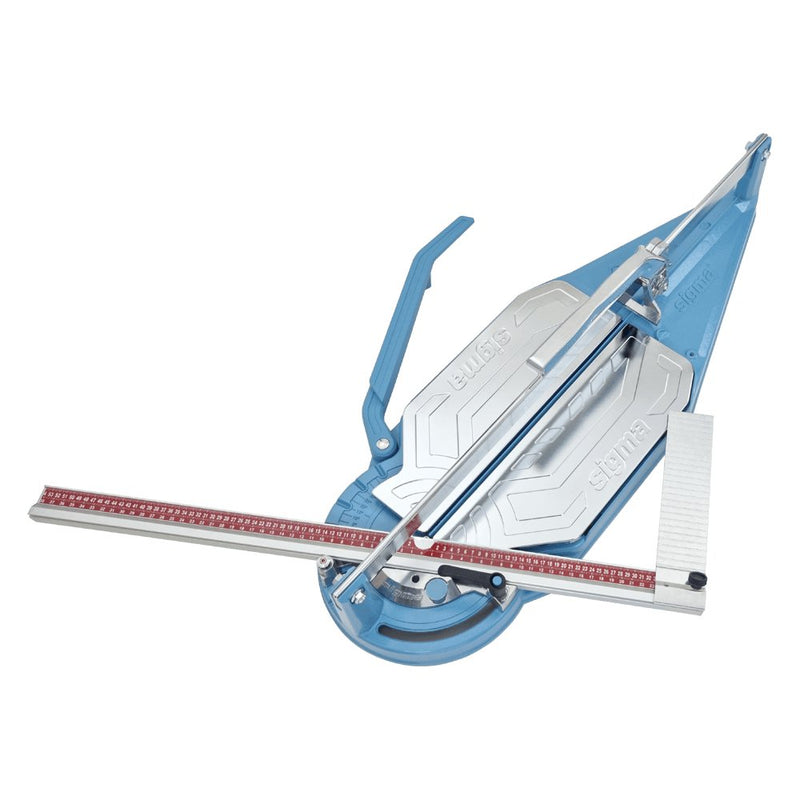

Sigma Series 4 "UP" Pulling Incision Tile Cutter

SKU

by Sigma

$595.00 - $835.00

$595.00

$595.00 - $835.00

$595.00

Quantity

Sigma Series 4 UP Tile Cutter: Precision Cutting at Its Best

Embrace the pinnacle of tile cutting technology with the Sigma Series 4 UP Tile Cutter. Designed for professionals who demand accuracy and ease, this cutting-edge tool offers superior pulling incision capability, ergonomic design, and enduring precision, transforming the way you work with tiles.

Features

Ergonomic Pulling Incision: Tailored for optimal cutting efficiency.
Enhanced Visibility: 12mm scoring wheel visible from operator's side.
Smooth Operation: CNC-milled wheel holder and anti-friction shell.
Durable Scoring Wheel: Optional TIN-coated version for enhanced longevity.
Precision Cutting: Handles materials up to 11/16" with consistent accuracy.
Innovative Carriage Design: Wear-free with double-row ball bearings.
Automatic Adjustments: Simplified tile insertion with steel compensator.
Protective Features: Wide splitting foot and interchangeable anti-mark protection.
High-Precision Handle: Mounted with thrust ball bearings for accuracy.
Versatile Cutting Angles: Pivoting guide bar for up to 45-degree cuts in both directions.

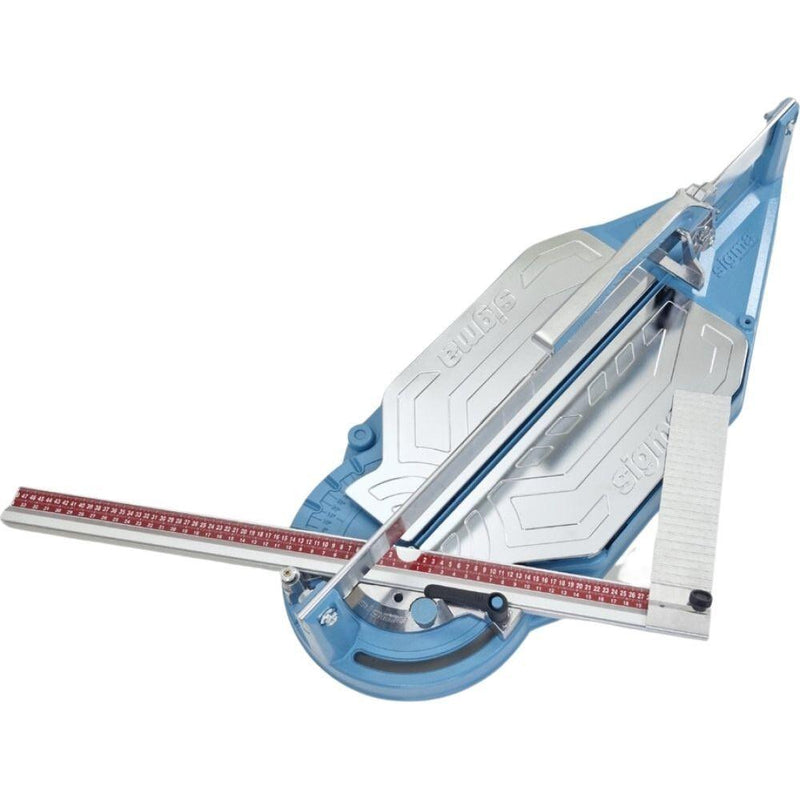

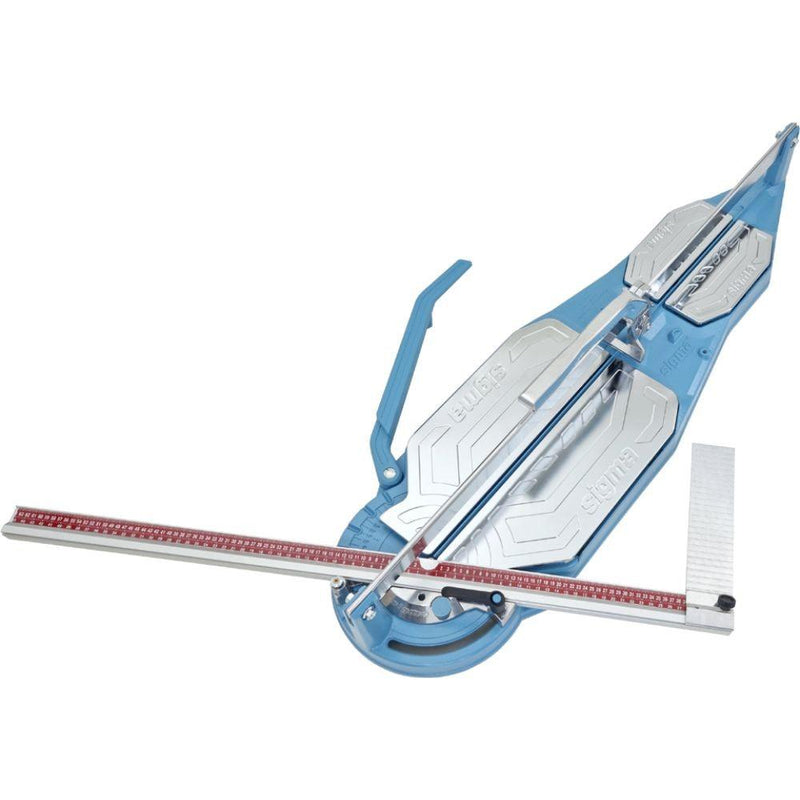

Model	Sigma 4BU	Sigma 4CU	Sigma 4DU
Sigma UP Tile Cutter Specifications
Length of Cut	27.5 in	33 in	40.5 in
Diagonally Cuts	19.5 in	23.4 in	28.6 in
Weight	23 lbs.	27 lbs.	32 lbs.

More Details

The Sigma Series 4 UP Tile Cutter is an exemplary addition to any professional's toolkit, offering unmatched precision and user-friendly features. Its ergonomic handle, specifically designed for pulling incisions, works in tandem with a visible 12mm scoring wheel, ensuring each cut is precise and effortless. The cutter's advanced design includes a CNC-milled wheel holder and anti-friction metal shell, facilitating smooth operation with minimal lateral wear. This durability extends to the scoring wheel, with an available TIN-coated version for extended lifespan. The cutter's capability of handling materials up to 11/16" (17mm) with its wear-free sliding carriage and double-row ball bearings exemplifies its commitment to long-term precision. Additional features like the automatic adjustments for tile insertion and protective elements like the wide splitting foot and anti-mark protection further underscore its utility and safety. With the ability to pivot its guide bar up to 45 degrees in both directions, the Sigma Series 4 UP offers versatility for a range of tile cutting projects, ensuring you achieve professional-grade results with every use.

What's Included

Sigma UP Tile Cutter
Sigma 14U UP Scoring Wheels
