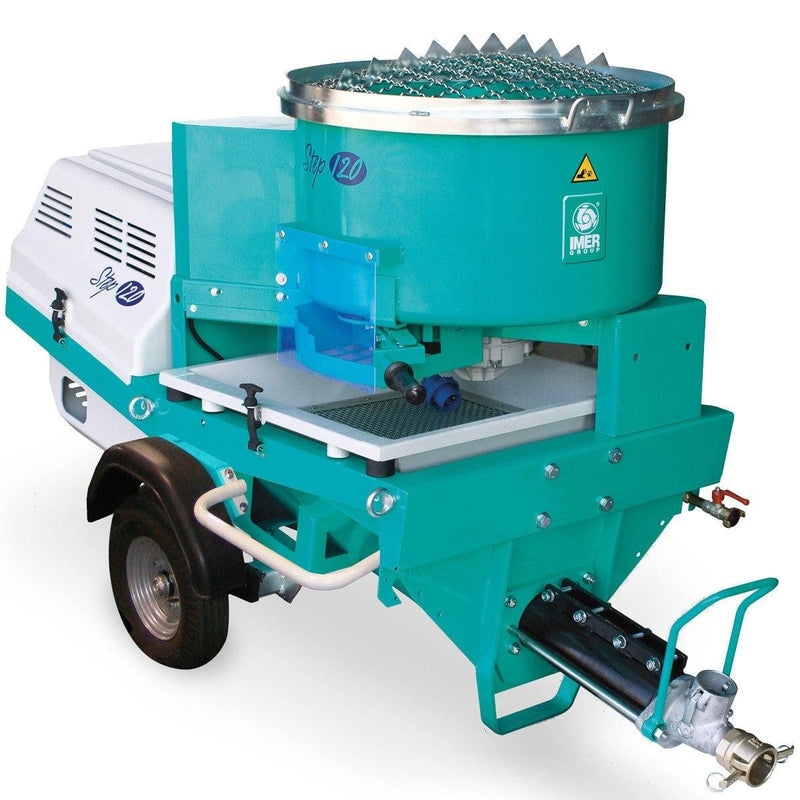

IMER Step-Up 120 Pumping / Spraying / Mixing Machine
Step-Up 120 Spray and Grout Pump Single Phase
This grout pump was designed for the applications that need to be pumped and sprayed with more flow and pressure. The built-in, vertical shaft mixer sits atop the Step-Up 120 and discharges into the pump for an easy way to fill the hopper. The motor and gearbox on the Mortarman 120 are ideal to handle the mixing a variety of materials with a aggregate size of 1/8".
The Step-Up 120 comes standard with an IM25L stator which can handle up to 3/8 inch aggregate and produce up to 6.6 GPM and 450 PSI of pumping pressure. The Step-Up 120 is made to be towed on the road but also able to pass through 36" doorways. A dual diaphragm maintenance free compressor is used to provide the air flow for spraying applications.
Standard Equipment included with every Step UP 120 - 3 Phase 220v Electric Pump
|Step Up 120 Pump with Mixer||220v Single Phase|
|Pump motor power rate||3hp|
|Mixer motor power rate||2hp|
|Electric compressor||1hp / 9cfm|
|Max aggregate size with IM 25L rotor/stator||1/8”|
|Maximum material flow rate (cubic ft)||6.6cf/0.9gpm|
|Horizontal pumping distance*||130 feet|
|Vertical pumping distance||50 feet|
|Pump hopper capacity||4.25 cf (31gal)|
|Mixer drum batch output||3.2 cubic feet|
|Dimensions W x L x H (inches)||80x32x50|
