What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Sigma 14X Scoring Wheel

SKU 14X

by Sigma

$26.00 - $26.00

$26.00

$26.00 - $26.00

$26.00

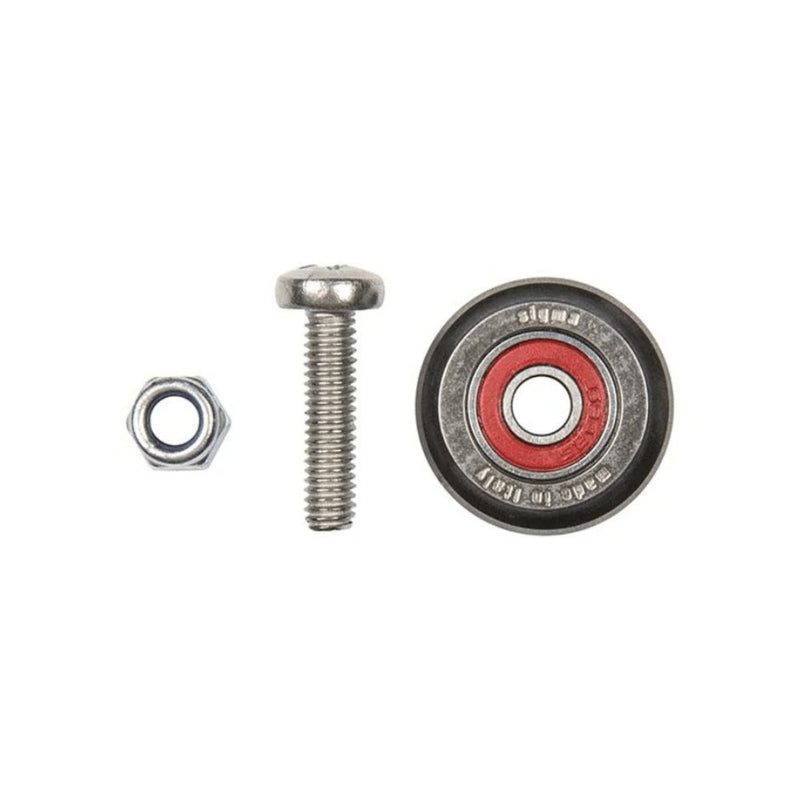

Sigma 14X: The Ultimate Scoring Wheel for XL Push Tile Cutters

Update your tile cutting game with the Sigma 14X Replacement Scoring Wheel, designed specifically for Sigma XL Push-style tile cutters. Crafted in Italy with a long-lasting carbide wheel, this essential tool ensures precise scoring across a variety of materials, including ceramic, glazed porcelain, and natural stone. Ideal for professionals aiming for accuracy and smoothness in every cut, the Sigma 14X comes complete with a replacement nut and bolt for easy installation.

Features

Enhanced Scoring Ability: Provides easier, deeper scoring on harder tiles.
Long-Lasting Sharpness: Precision-ground carbide maintains sharpness for extended performance.
Optimal Size: 1/2" (12 mm) diameter wheel for versatile cutting applications.
Restores Cutter Performance: Replacing the wheel rejuvenates your Sigma cutter for original condition performance.
Complete Set: Includes both nut and bolt for a hassle-free installation.

Compatibility of Sigma 14X Scoring Wheel

Sigma XL Series:

12C XL Cutter
12D XL Cutter
12E XL Cutter

More Details

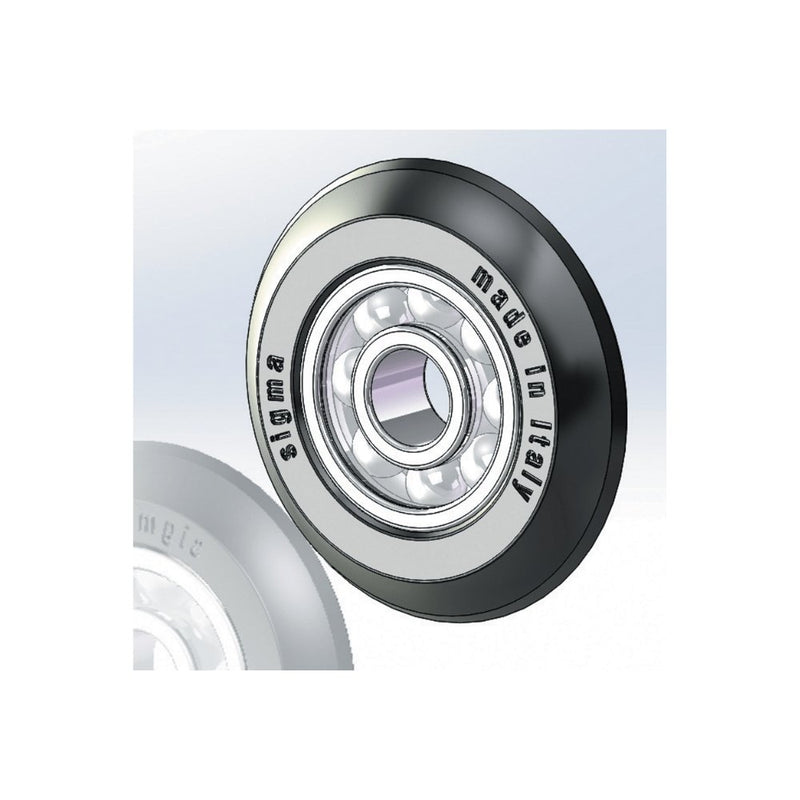

The Sigma 14X Max Scoring Wheel is compatible with Sigma XL Push style tile cutters, and is engineered in Italy to deliver flawless cuts on a variety of tile materials. From ceramic and glazed porcelain to glass mosaics and even select natural stones, the Sigma 14X ensures a perfect score every time, thanks to its carbide construction and ball-bearing mount. Its inclusion of a replacement nut and bolt makes installation quick and straightforward, allowing tile contractors and home remodelers to maintain their workflow efficiency without compromise. Choose the Sigma 14X for its exceptional quality and performance, and see the difference it makes in your tile installation projects.

Sigma 14X Scoring Wheel

Sigma 14X: The Ultimate Scoring Wheel for XL Push Tile Cutters

Features

Compatibility of Sigma 14X Scoring Wheel
