What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

iQ228CYCLONE Miter Attachment

SKU 0228-25600-01

by IQ Power Tools

$89.00 - $89.00

$89.00

$89.00 - $89.00

$89.00

iQ228CYCLONE Miter Attachment: Precision Bevel Cuts Made Easy

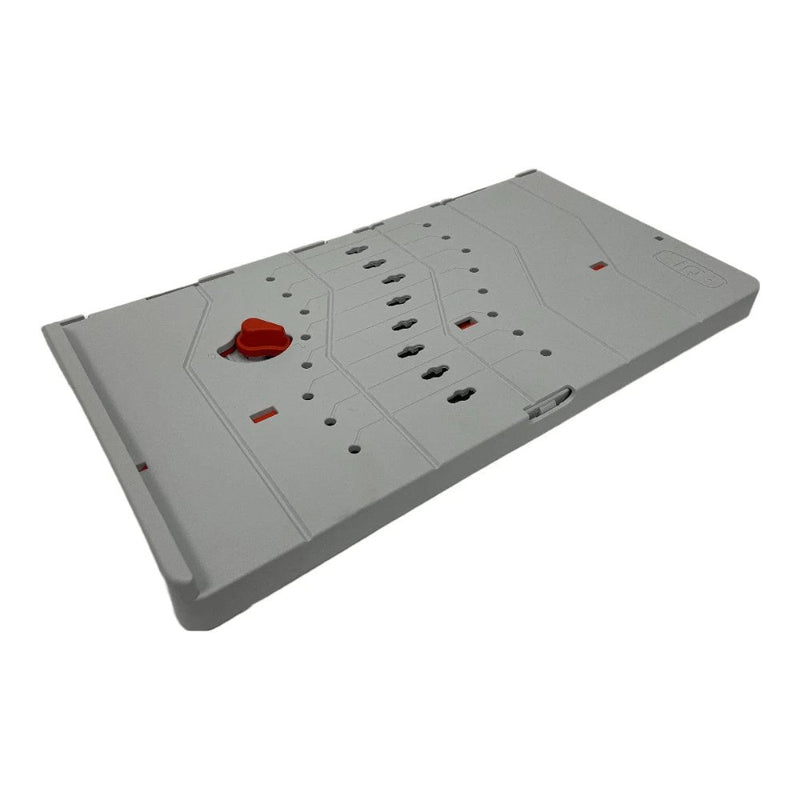

Introducing the iQ228CYCLONE Miter Attachment, a game-changing accessory for your iQ228CYCLONE Saw. Designed to make precise miter bevel cuts in ceramic and stone tile, this attachment is an essential tool for professionals seeking accuracy and efficiency in their tile cutting work.

Features

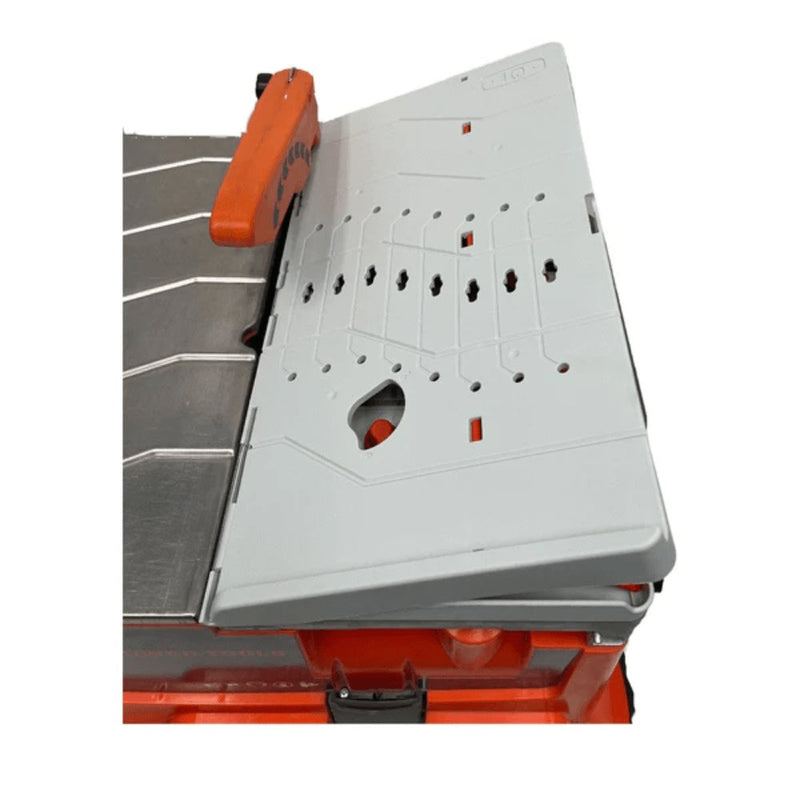

Accurate Miter Bevel Cuts: Achieve 22.5° and 45° miter bevel cuts effortlessly.
Extended Cutting Length: Offers up to 18" of cutting length for larger tiles.
Optimal Cutting Depth: Capable of cutting up to 3/8" deep.
Compatibility: Works seamlessly with the Standard Fence and Micro Fence, included with the iQ228CYCLONE Saw.

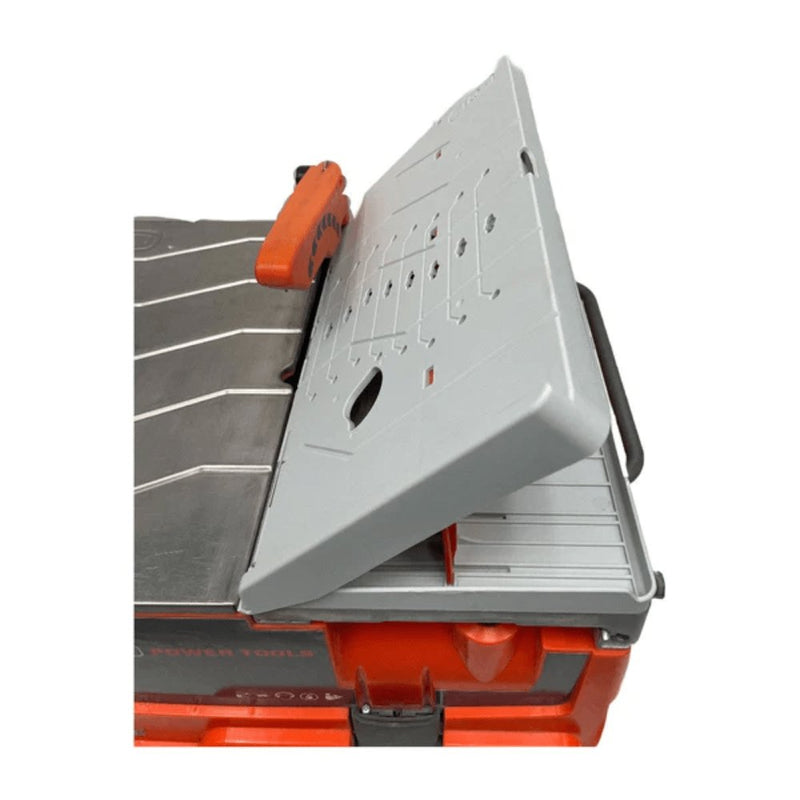

Easy Installation: Simply lock the attachment onto the rolling table.
Versatile Use: Ideal for both ceramic and stone tiles.
Professional Grade: Enhances precision in professional tiling projects.
Cost-Effective: Priced at $89.00 with an option for interest-free installments.
SKU Reference: Easily identified with SKU: 0228-25600-01 for ordering.

More Details

The iQ228CYCLONE Miter Attachment, SKU: 0228-25600-01, is an innovative addition to the professional tiler's toolkit, priced at an affordable $89.00. It offers unmatched precision in making 22.5° and 45° miter bevel cuts, essential for intricate tiling projects. The attachment boasts an impressive 18-inch cutting length, accommodating larger tiles with ease, and a 3/8-inch cutting depth, ensuring it meets a variety of tiling needs. Designed to work in conjunction with the iQ228CYCLONE Saw's Standard Fence and Micro Fence, this attachment ensures seamless integration and functionality. Its easy-to-install mechanism allows it to lock onto the saw’s rolling table, providing stability and accuracy in every cut. This makes it an invaluable tool for professionals working with ceramic and stone tiles, where precision is paramount. The iQ228CYCLONE Miter Attachment not only elevates the quality of your tiling work but also offers a cost-effective solution, with the option for interest-free installments, making it accessible for professionals looking to enhance their tiling capabilities.

What's Included

iQ228CYCLONE Miter Attachment
