What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

IQ228 CYCLONE 7" DUSTLESS/DRY CUT BENCH TOP TILE SAW WITH ADDITIONAL HARD MATERIAL BLADE

SKU iQ228PROMO

by IQ Power Tools

$499.00 - $499.00

$499.00

$499.00 - $499.00

$499.00

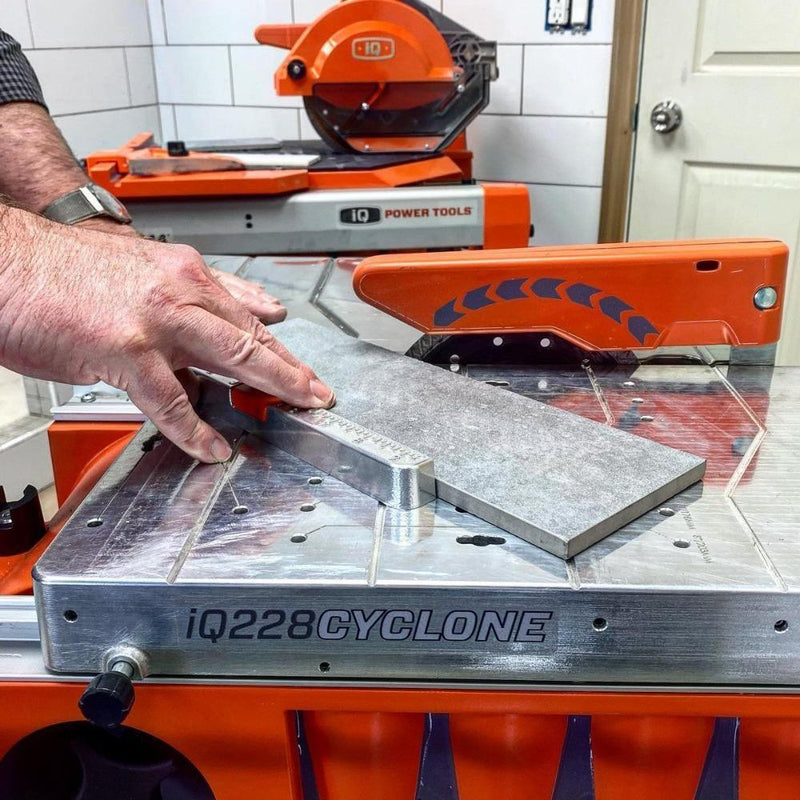

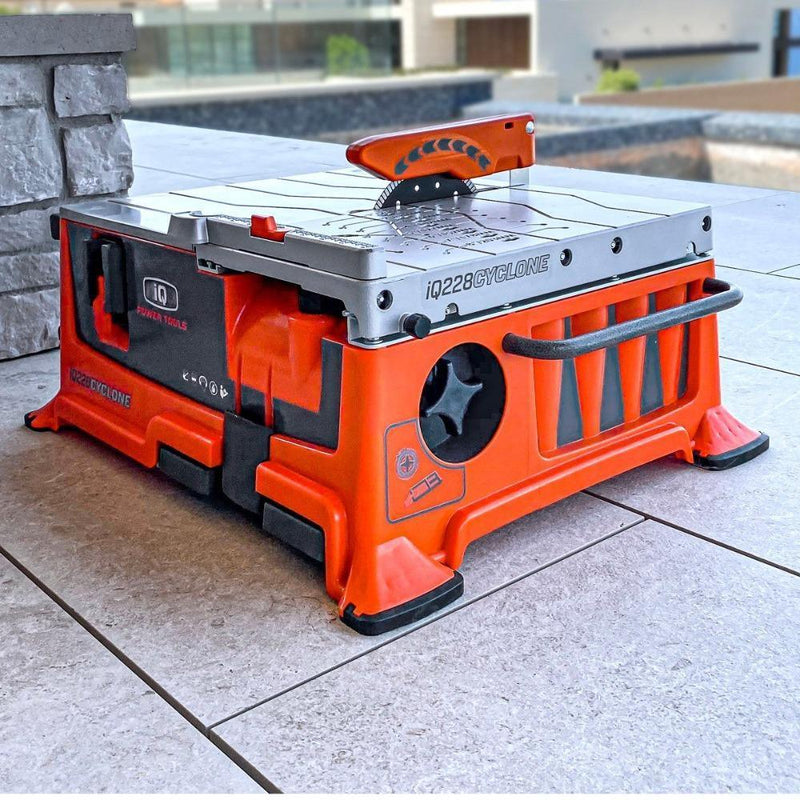

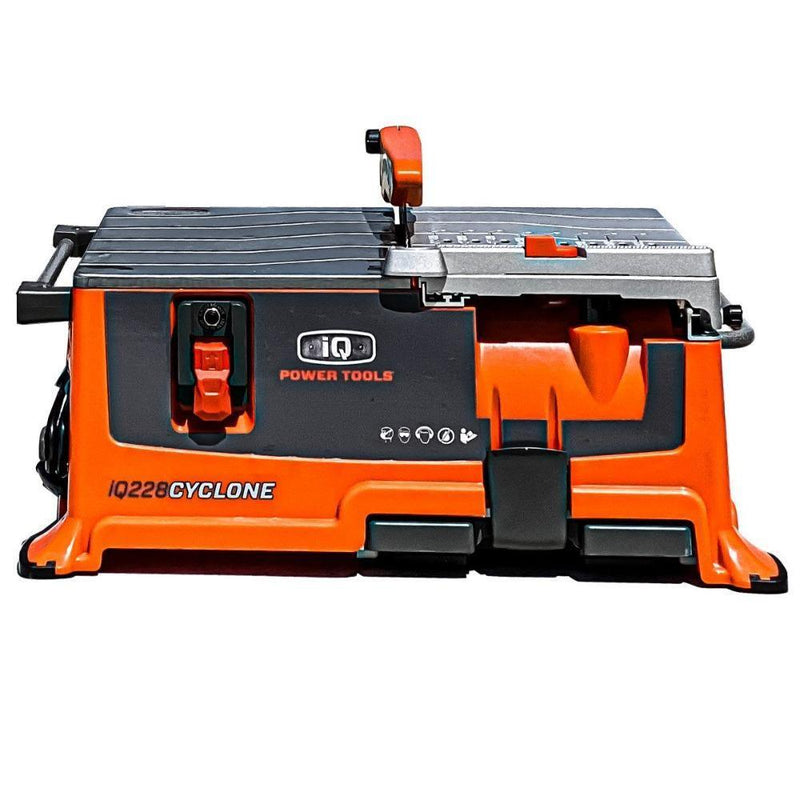

iQ228 Cyclone: Precision Cutting Meets Clean Air with 7" Dustless Tile Saw

Revolutionize your tile cutting process with the IQ228 Cyclone Tile Saw, the world's first 7" dry-cut tabletop saw with integrated dust control. Designed for high precision and performance, this saw changes the game for cutting ceramic, porcelain, marble, and stone, offering a dust-free, efficient experience.

Features

Integrated Dust Control: Features a Cyclone vacuum system capturing up to 99.5% of dust during operation.
Safe and Clean: Meets OSHA 2016 silica standards, ensuring a safer working environment.

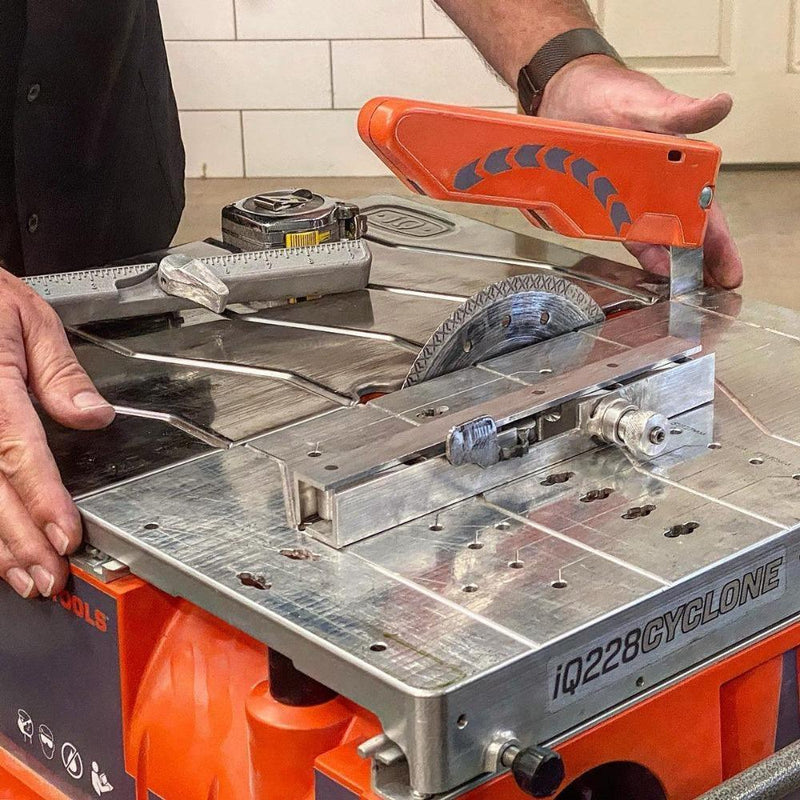

Revolutionary TRU-CUT System: Guarantees accurate, straight cuts, reducing material waste.
Multi-Material Cutting: Equipped with a 7" Q-Drive diamond blade suitable for various hard materials.
High-Performance Vacuum: Boasts a high-output 92 CFM vacuum for effective dust containment.
Easy Transportation: Comes with a built-in handle for portability.
Quick-Spin Filter: Three-stage filtration system for convenient cleaning.
5 lbs Dust Tray: Efficient dust containment and disposal.
Cool Cut Technology: Maintains blade temperature for optimal cutting.
Speed and Precision: Blade speed of 6,000 rpm for quick, clean cuts.

iQ228 Cyclone Saw Specifications
Voltage	120V
Saw Motor power	1800 Watt
Saw Amperage	15 amps
Length of Cut	48"
Diagonal Length of Cut	18"
Arbor	Q-Drive
Blade Capacity	7"/ 180mm
Depth of Cut	1" (25.4mm)
Filter Type	iQ Dura Brand Cartridge
Dust Capacity	5 lbs. or over 250 linear ft.
Saw Dimensions	25.2" X 21.3 "X 13.4 " 640 X 540 X 340 mm
Weight	36 lbs / 16.3 kg

More Details

Step into the future of tile cutting with the IQ228 Cyclone Tile Saw, a masterpiece engineered for unmatched precision and efficiency. Its cutting-edge Cyclone vacuum system, capturing up to 99.5% of dust, redefines cleanliness on the job, adhering to and surpassing OSHA's stringent silica standards. This 7" saw is not just a tool but a revolution in tile cutting, boasting a TRU-CUT system with dual rip fences, ensuring each cut is as accurate as it is effortless. Whether you're slicing through ceramic, porcelain, or marble, the included 7" Q-Drive diamond blade, enhanced with Cool Cut Technology, makes it a breeze. The high-output vacuum ensures a spotless workspace, while the Quick-Spin filter and 5 lbs dust tray make cleanup a snap. Designed for the professional in mind, this saw combines power, precision, and portability, highlighted by its built-in handle and an impressive blade speed of 6,000 rpm. Experience the pinnacle of tile cutting technology and elevate your craftsmanship with the IQ228 Cyclone Tile Saw.

What's Included

iQ228 Dry-Cut Tile Saw
7" Combo Blade
Special Promo 7" Hard Material Blade
Standard fence
Micro Fence
Operator's manual
